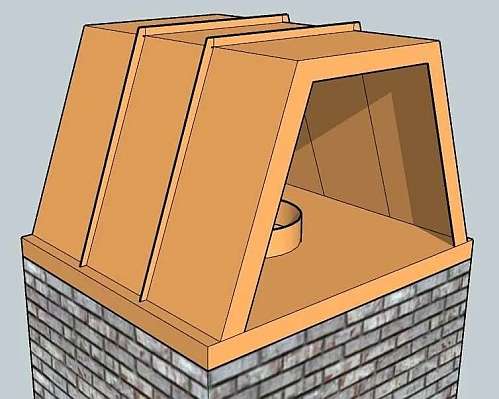

Chimney Shroud CS108



  • For use on chases with metal flues or full masonry chimneys.
  • 16oz Bright and 16oz Freedom Gray Copper and 0.032″ Kynar Aluminum are available. All Pac Clad aluminum colors are available. Email us for a quote on any colors not optioned. Longer lead times are probable and pricing may vary.
  • Pac Clad Color Chart
  • Enter the desired LENGTH and WIDTH with Fractions as Decimals. Please measure all four sides, since some chimneys/chases are not perfectly square or rectangular. Enter the larger of the Length and Width dimensions.
  • Cap Height will equal 2/3rds of the Width entered.
  • Select the Side Flange Height and Flue Hole Diameter for Chases.
  • Bottom Edge of the Side Flange is Hemmed.
  • Locate the Flue Hole using the E and F Dimensions.
  • Select MESH SIZE (5/8″ or 3/4″) or NO MESH. Some jurisdictions require a 5/8″ spark arrester.
  • Email us for quotes on multiple flue configurations, unusually shaped chases/chimneys or other customizations.
  • Shipped fully assembled.
  • Installation materials are included.
  • See the Shopping Cart for QUANTITY DISCOUNTS. Discounts will be given for multiple units of the same size.
  • Shipping is included for the Lower 48 States. Select the correct destination type.
  • Lead Time ~ 3-4 Weeks.
