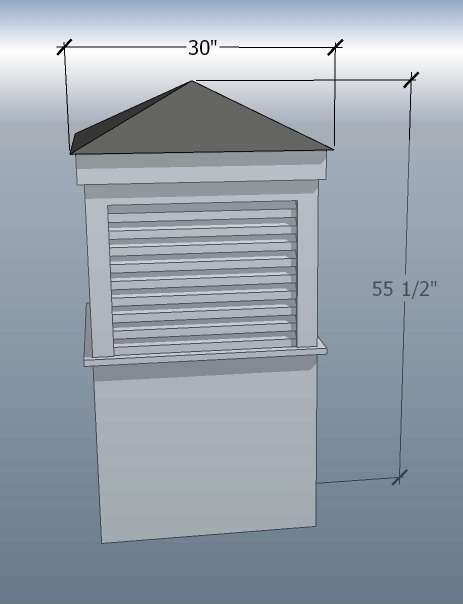

Standard PVC Louvered Cupola. Options for the roof include Kynar finish 0.032 aluminum, copper, or bare sheathing to apply your own shingles or sheet metal.
Sizing Guide:
18×18 – 22ft to 27ft of Ridge.
21×21 – 26ft to 32ft of Ridge.
24×24 – 30ft to 36ft of Ridge.
30×30 – 37ft to 45ft of Ridge.
36×36 – 45ft to 54ft of Ridge.
42×42 – 52ft to 63ft of Ridge.
48×48 – 60ft to 72 ft of Ridge.
These units are shipped in three sections for easy installation. The base and mid section are paintable White PVC.
The paintable aluminum louvers are screened. This unit can be applied on top of existing shingle or metal roofing for decorative only purposes or can be used for ventilation. Order a Base Flashing Kit when installing over a ventilation opening.
Specify the roof pitch the unit will be installed on if the base is to be pre-cut or a flashing kit is desired. Can be installed at the peak of a hip roof.
Select the roof material desired. All chart colors are available. Email us for a quote for colors not optioned. Longer lead times are probable.
