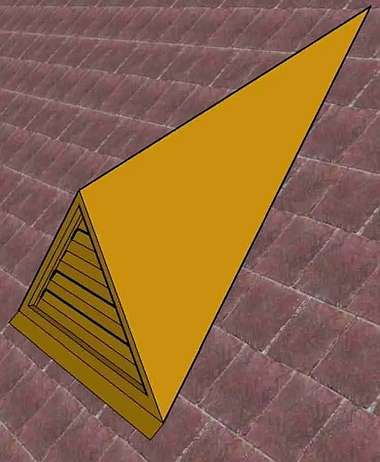

Steep Roof Triangle Dormer
- Our wooden framing creates a sturdy, but relatively light weight unit.
- Available with glass (clear or obscured) for exterior light or install back lighting for a dramatic night time effect. Insulated glass is also available.
- Available with screened louvers for attic ventilation.
- Select from 16oz or 20oz bright copper, 16oz Freedom Gray Copper, 24ga galvanized, or 0.032″ Kynar aluminum.
- Pac Clad Color Chart
- Available with Paintable PVC face. Louvers will be paintable white aluminum in this configuration.
- All units include a 6″ hemmed valley flange for roof connection as well as an interior nailing flange.
- The front includes a removable apron to cover roofing fasteners to allow installation before the roofing material and to aid future re-roofing.
- Seams are soldered when necessary (copper and galvanized) or riveted and sealed (Kynar aluminum).
- Email us with your desired specifications for pricing and lead times.
- Required specifications:
- Dormer size. Available sizes: 24×12, 30×15, 36×18, 42×21, 48×24, 60×30.
- Roof Material: 16oz or 20oz bright copper, 24ga galvanized, 16oz Freedom Gray copper, 0.032″ Kynar aluminum.
- Face and side Material: Same as roof material or PVC.
- Roof Slope that the unit will be installed on.
- Dormer Roof Type – Flat seam or standing seam. Standing seam is not available with kynar aluminum.
- Louvers or Window.
- For Louvers: Screen or no screen.
- For Windows: Clear glass, obscured glass, or insulated glass.
- For Windows: Applied muntins or no muntins and configuration if muntins are desired.
- Quantity.
- Delivery address.
