Diamond Shingles

$0.00

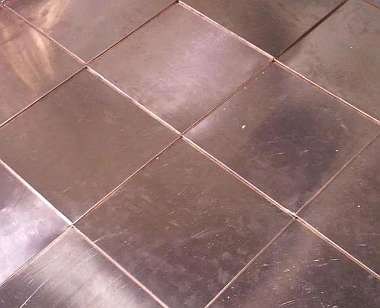

Interlocking shingles for bays, dormers, or even the whole roof. Can also be used as siding. Seams may be malleted flat or left raised to provide more texture. May be installed Diagonally or Horizontally.
12oz, 16oz, or 20oz Bright Copper, 16oz Freedom Gray Copper, 26ga or 24ga Galvanized, Rezibond, 26ga or 24ga Galvalume, and 0.032″ Kynar Aluminum. Some colors have longer lead times.
Pac Clad Color Chart
Available sizes: 9″x9″ (7 1/2″ x 7 1/2″ net coverage), 12″x12″ (10 1/2″ x 10 1/2″ net coverage), and 18″x18″ (16 1/2″ x 16 1/2″ net coverage).
Eave and Rake Starters are available for Diagonal installation. They are not necessary for horizontal installation.
9″x9″ Starters yield approximately 10 linear inches each.
12″x12″ Starters yield approximately 14 linear inches each.
18″x18″ Starters yield approximately 23 linear inches each.
Starters lock to the drip edge. Before ordering Rake Starters, determine if you’ll be starting the project on the Left or Right side and order accordingly.
9″x9″ covers 0.4 sq ft each. 12″x12″ covers 0.75 sq ft each. 18″x18″ covers 1.9 sq ft each. Each shingle requires two clips and two nails.
Quantity discounts will be calculated in the shopping cart.
Lower 48 State shipping is included.
Lead Time ~ 1 – 2 Weeks
Please email us for help ordering.

Material

Shingle Size

Field Shingle Quantity

Eave Starter Quantity

Rake Starter Quantity

I understand this product is custom fabricated to order and is non-returnable.

Enter the QUANTITY above and leave the box below set at 1.

Additional information

MATERIAL	12oz Bright Copper, 16oz Bright Copper, 20oz Bright Copper, 16oz Lead Coated Copper, 16oz Freedom Gray Copper
SIZE	9×9, 12×12, 18×18
